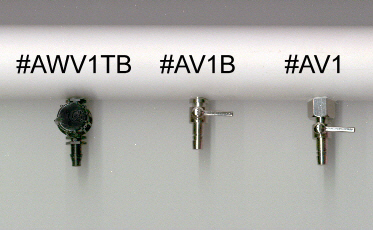

We carry valves to suit most any application. The most popular are the AV1E, plated brass lever style. They have tapered valve seats for long life. All metal valves can be self threaded into PVC pipe by first drilling an undersized hole, then thread valve into the plastic pipe by hand or chuck barb on straight valves and drive in with a screwgun style drill. Or, for ease of installation (AV4 or AVW1TB) use a Tap to thread the holes first. For use on drip feed water systems use #AWV1TB, which is a plastic valve designed for water service to be leakproof. Good for use on water or air systems. We also carry inexpensive fixed rate flow emitters for air or water use. Please call if you would like help designing your air or water distribution system. CALL for quantity discounts.

Item #


Description

Price

Price @ qty

AWV1BB

Plastic Air / Water Valve
airline barb x airline barb

$0.81

25 @
 $0.75

AWV1TB

Plastic Air / Water Valve
10-32 thread x airline barb

$0.81

25 @
 $0.75

AV1E

Lever Air Valve
plated Solid Brass
thread x airline barb
MADE IN USA
from domestic and imported parts
(Threading tap is now available below
or install by self forming thread in PVC pipe
requires #14 or 3/16” drill bit)

$1.95

50 @
$1.85

AV1B2

Lever Air Valve
plated Solid Brass
thread x airline barb
(1/16-27 NPT thread, drill first with 1/4” bit then use 1/16NPT tap below or can also be self threaded using 9/32” drill in PVC pipe)

OUT
future availability

AV1X

Lever Air Valve
ECONOMY IMPORT - plated Brass
thread x airline barb
plated carbon steel spring washer
lower grade valve than our regular offerings
(Install by self forming thread in PVC pipe
pre-drill with 3/16” drill bit)

$0.79

BBV014

Solid Brass Nickel Plated Ball Valve
1/4 NPT x 1/4” barb

$5.94

12 @
$5.58

BBV08M

Solid Brass Ball Valve
1/4 BSPT x 5/16” (8mm) barb
self thread pre-drill w/ 15/32”drill bit or use our special tap

$3.50

12@
$3.00

BBV038

Solid Brass Nickel Plated Ball Valve
1/4 NPT x 3/8” barb

$6.12

12 @
$5.75

AVGV2P

2-way Plastic Gang Valve
2 adjustable valves w/ pass through end tubing connector on plastic hanger bracket


$3.90

AV-GV2CVPD

2-way Plastic Gang Valve
2 adjustable valves on plastic hanger bracket. Includes Check valve on inlet fitting

$5.26

AVGV3P

3-way Plastic Gang Valve
3 adjustable valves w/ pass through end tubing connector on plastic hanger bracket

$5.16

AV-GV3CVPD

3-way Plastic Gang Valve
3 adjustable valves on plastic hanger bracket. Includes Check valve on inlet fitting

$6.39

AVGV4P

4-way Plastic Gang Valve
4 adjustable valves w/ pass through end tubing connector on plastic hanger bracket

$6.45

AVGV5P

5-way Plastic Gang Valve
5 adjustable valves w/ pass through end tubing connector on plastic hanger bracket

$7.62

ALL MANIFOLDS MADE IN USA
Pre-built manifolds for fast installation of Central Air Systems.
Includes hanger brackets, end plug and hose barb connector or PVC threaded adapter.
Daisy chain multiple AVMP10 or AVMP20 manifolds with hose or PVC pipe

COMPACT Manifolds from 1/2” Schedule 80 PVC pipe (0.840”)
Good for smaller mid-size diaphragm pumps: DAPMH8-20

AVMPC-6

6 Outlet optimized Air Manifold
w/ 6 brass valves in 1/2” Plastic Pipe Manifold w/ 3/8” FNPT threaded ends and mounting clips
specify Hose Barb size connection when ordering. Can be connected in series for multiple manifold installations or singly with end plug.
(use 3/8 barb - DAPMH8-15 pumps)

$16.34

AVMPC-8

8 Outlet optimized Air Manifold
w/8 brass valves in 1/2” Plastic Pipe Manifold w/ 3/8” FNPT threaded ends and mounting clips
Specify Hose Barb size connection when ordering:
 airline barb, 1/4”, 3/8”, 1/2”
Can be connected in series for multiple manifold installations or singly with end plug.
(use 1/4” or 3/8” barb -
 DAPMH8-20 pumps)

$18.10

STANDARD Manifolds from 3/4” Schedule 80 PVC pipe (1.050”)
Good for Linear Piston or larger Diaphragm pumps


SPECIFY END CONNECTION BELOW: 2 fittings included (one for each end) with price of manifold.

AVMP-8SE

8 Outlet optimized Air Manifold
w/ 8 brass valves in 3/4” ID PVC Pipe w/ internal 1/2” NPT threaded connection on either end For use with Linear Piston or other high output Central Air Pumps
Includes hanging brackets, 2 end connectors.
SPECIFY END CONNECTION DESIRED:
2 BARBS FOR THROUGH FEED USING TUBING


$23.02

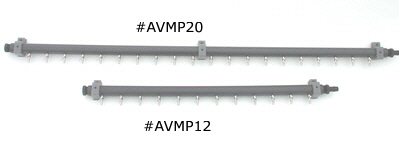

AVMP-12E

12 Outlet optimized Air Manifold w/ 12 brass valves in 3/4” ID PVC Pipe w/ internal 1/2” NPT threaded connection on either end For use with Linear Piston or other high output Central Air Pumps
Includes hanging brackets, hose barb and threaded plug.
SPECIFY BARB SIZE

$33.45

AVMP-16E

16 Outlet optimized Air Manifold w/ 16 brass valves in 3/4” ID PVC Pipe w/ internal 1/2” NPT threaded connection on either end For use with Linear Piston or other high output Central Air Pumps
Includes hanging brackets, hose barb and threaded plug.
SPECIFY BARB SIZE

$39.42

AVMP-18E

18 Outlet optimized Air Manifold w/ 18 brass valves in 3/4” ID PVC Pipe w/ internal 1/2” NPT threaded connection on either end For use with Linear Piston or other high output Central Air Pumps
Includes hanging brackets, hose barb and threaded plug  - SPECIFY SIZE BARB.

$43.10

AVMP-20E

20 Outlet optimized Air Manifold w/ 20 brass valves in 3/4” ID PVC Pipe 40” long, internal 1/2” NPT threaded connection on either end
For use with Linear Piston or other high output Air Pumps
Includes hanging brackets, hose barb and threaded plug  - SPECIFY SIZE BARB.

$47.42

Extended Length Manifolds
Same 3/4 Schdl 80 PVC as above but with wider valve spacing when our standard valve spacing is too close.
First valve 3” from each end then every 4” valve to valve.

AVMP-10XE

10 Outlet Extended Length Air Manifold w/10 brass valves in 3/4” ID PVC Pipe w/ internal 1/2” NPT threaded connection on either end For use with Linear Piston or other high output Central Air Pumps. 42” OAL
Valves spaced every 4” apart
Includes hanging brackets, hose barb and threaded plug  - SPECIFY SIZE BARB.

$33.00

1. 1 BARB AND 1 PLUG FOR END OF RUN OR SINGLE MANIFOLD INSTALLATIONS - SPECIFY SIZE FOR INLET BARB
2. 2 BARBS FOR THROUGH FEED USING VINYL TUBING
3. THREADED PIPE NIPPLE ON ONE OR BOTH ENDS FOR DIRECT CONNECTING MANIFOLDS IN SERIES
4. PVC THREADED ADAPTER ON ONE OR BOTH ENDS FOR USING 3/4” PVC PIPE

#1-xx, Plug for outlet and 1 Barb for inlet end, specify size:
 1/4”, 3/8”, 1/2”, 5/8”, 3/4”.
Barb end and plug connection is the standard when connecting a single manifold to a central air pump. We normally supply a short length of 5/8” braided tubing with pump to connect to manifold when purchasing these items together.

#2-xx, Barbs for both ends, specify size:
 1/4”, 3/8”, 1/2”, 5/8”, 3/4”
Barb end connection is the most common, which allows larger diameter flexible vinyl tubing be used between multiple manifolds. Tubing is available in  many common sizes here.


#3, Threaded pipe nipples for both ends
Threaded nipples will screw into either end of our 3/4 PVC manifolds and allow side by side connection of multiple manifolds for setups where close together layout of multiple manifolds is desired.

#4: PVC Threaded adapter
Female 3/4” Slip socket x 1/2” Male NPT thread
Threaded end of adapter will thread into ends of any manifold shown in this section below. This end connection facilitates the easy use of our pre-built manifolds with inexpensive Schedule 40 PVC while also maintaining threaded ends in manifold for alteration such as downsizing / upsizing or other future changes in pipe / manifold layout.

Large Ball Valve Manifolds for 1/4” or 3/8” ID tubing (specify)
made from 1” S80 PVC pipe with 1” FNPT ends - specify end connections - barb size, plug
typically used for larger airstones or Rubber diffusers which require higher flow rates than what standard airline tubing can provide

AVMPBV-6L

Oversize ball valve Manifold - 6 valve
uses BBV-1/4 brass valves with 1/4” barb fittings to connect 1/4” ID hose (3/8” valves also available)
Use with larger airstones - AS2.5R, ADRS4, AS1.2A, AS1.2C or AS110 series
available in other configurations -8 or 12 valves.

$52.75

AVMPBV-8L

same as above with 8 valves

$58.29

AVMPBV12L

same as above with 12 valves

$80.00

AVMPBV-**

OTHER CUSTOM sizes - specify

CALL

Threading Taps & Drill Bits:
All of our taps are high grade HSS (High Speed Steel) for much longer life than cheap Carbon Steel taps. These HSS taps can even be used on steel without damage. 1/8” NPT used for threading holes in PVC pipe to accept Air Valve #AV1. Makes installing a Centralized Air System a simple task. Drill 11/32” holes for 1/8NPT or 1/4”hole for 1/16NPT, then run tap to 1/2 depth with Screw Gun at slow speed and reverse out of hole. 1/16NPT taps use 1/4” or 7/32 drill bit. 10-32 tap use 5/32 or #21 drill bit.

TAP1032

10-32 HSS Tap
(special H1 tolerance thread - provides better thread seal in plastic pipe
for #AWV1TB valves, requires #21 size drill bit below)

$6.25

TAP-AV1E

Special tap for AV1E valves
(pre-drill hole with #14 drill bit or
4.5 mm drill bit)

$10.50

TAP116NPTF

1/16-27 NPTF HSS dryseal Tap
5/16” shank
(for AV1B valves
requires 1/4” drill bit)

$7.50

TAP1/8NPTFS

1/8-27 NPT HSS Tap
7/16” shank
(for AV1 & AV4 valves)

$7.95

TAP1/4NPT-RS

1/4-18 NPT HSS Tap
7/16” dia shank
(for BBV1/4 and PBV1/2x1/4NPT valves)

$7.50

TAP1/4BSPT-RS

1/4-19 BSPT tap
for BBV08M brass valves
pre drill w/7/16” drill bit

$22.50

DRILL21SM

Twist Drill Bit #21
for above 10-32 tap
(for use on AWV1TB valves)

$3.80

DRILL14SM

Twist Drill Bit #14
short length split point bit for easy drilling
(for use with AV1E valves)

$3.75

Air or Water Emitters: Use for creating inexpensive drip water feed systems. Easily installed in poly mainline tubing by first piercing a small hole with an awl or hole punch tool (do not drill hole), then press fitting emitter into hole. Use on low pressure water supplies only, (10-30 PSI). Pressure Regulators found here. Emitters will provide a drip flow of water at a fixed rate of flow (actual output may be slightly more or less depending on input pressure), choose from either 1/2 gph or 2 gph flow rates. Connect output of drip emitter with black vinyl drip tubing or airline tubing. If using for air use #AWE.5 for small aquariums and #AWE2 for larger deep tanks.

AWE.5

1/2 gallon per hour drip emitter

$0.25

100 @
$0.20

AWE1

1 gallon per hour drip emitter

$0.25

100 @
$0.20

AWE2

2 gallon per hour drip emitter

$0.25

100 @
$0.20

AWE-CETA05

1/2 GPH Pressure Compensating Drip Emitter,
red barb x barb
color coded easy gph identification

$0.39

100 @
$0.31

AWE-CETA1

1 GPH Pressure Compensating
Drip Emitter,
black barb x barb
color coded easy gph identification

$0.39

100 @
$0.31

AWE-CETA2

2 GPH Pressure Compensating
 Drip Emitter
green barb x barb
color coded easy gph identification

$0.39

100 @
$0.31

PHBP-0532-10CT

Goof Plug for emitter holes or use as airline plug,
price per 10 count

$0.50

10 @
$0.42

AWE-HPKP

Plastic Key Punch - punching holes in drip mainline tubing

$0.65
