Hydro-Flo-Sponge:

Sponge Filter specially fitted with a miniature water pump
Use fine sponge filter for polishing water or in small aquariums can replace air driven style to eliminate bubble noise or when desired for gentle water movement such as planted tanks.
Use coarse sponge to provide longer service life between cleanings or when higher flow rates are desired. Coarse foam sponge works well as mechanical filtration as well as biological.
Mini pump sits attached to top of lift tube allowing flow to be directed upwards for better turnover. Larger HSFP300D with 296 gph pump for high turnover heavily populated aquariums or Horizontal versions for larger tanks/troughs/sumps.

HS-FP0C030

Hydro-Flo mini Sponge Filter,
single #0 coarse sponge
2 3/4” dia x 2” high sponge
w/ 30 gph pump
Useful for small nano or planted tanks where very limited flow rate is desired and limited biological capacity. horizontal outlet with slow water movement to direct nutrients throughout tank limiting surface agitation for minimal gas exchange.

$18.00

HS-FP2C030H

Hydro-Flo mini Sponge Filter,
single #2 coarse sponge
2 3/4” dia x 4” high sponge
w/ 30 gph pump
Same as above but using 4” high sponge

$22.00

HS-FP3C100X

Hydro-Flo Sponge Filter,
single #3 coarse sponge
w/ 100+ gph pump

$30.50

HS-FP4C100X

Hydro-Flo Sponge Filter,
single #4 coarse sponge
w/ 100+ gph pump

$32.50

HS-FP5C100X

Hydro-Flo Sponge Filter,
single #5 coarse sponge
w/ 100+ gph pump

$34.00

HS-FP300D

Hydro-Flo Sponge Filter
DOUBLE HEIGHT SPONGE
w/ Quiet One 1200, 296 gph powerhead
Includes outlet elbow and Flexible Ball Socket joint tubing and nozzle for adjustable flow direction.

Provides large filtration capacity:
over 200 cu. inches of biological/filter area. More than most hang on back filters! Combined with high volume water pump and no head loss from suction tube will provide more turnover than many filters advertising higher gallons per hour.

$59.95

HS-FPH350T

Hydro-Flo Triple Horizontal filter
350 Gallon per Hour
Mounts horizontal on bottom of aquarium or in sump, Ball/Socket fitting outlet to direct flow
Uses our PFP pipe for secure mounting of inlet sponges and extra outboard foot support

$55.95

HS-FPH600Q

Hydro-Flo QUAD Horizontal filter
600 Gallon per Hour
Mounts horizontal on bottom of aquarium or in sump, Ball/Socket fitting outlet to direct flow
Uses our PFP pipe for secure mounting of inlet sponges and extra outboard foot support

$69.95

Hydro-Sponge Pre-Filters:

Coarse Foam Sponge for use as pre-filters on intakes of Water Pump intakes, Power Filters, Cannister Filters, Wet-Dry intakes, Bulkhead fitting intakes or anywhere particulate needs to be screened or intakes diffused to prevent small fish or fry from entering intake tubes. Higher flow rate intakes generally require larger sponges with greater surface area to prevent suction effect of intake. Either use a PVC “Tee” inlet with multiple small sponges or 1 larger sponge when this is a concern. Filter-Max III come with multi size adapters for various intake tubes of commercial aquarium filters such as Power Filters etc. These Filter Max do not have adapters for PVC pipe sizes. For adapting sponges to PVC use any of the other pre-filters which are made to fit on common schedule 40 PVC pipe fittings. The “HS -PF90” style shown above have a right angle elbow and all clear fittings. Pre-filters with “mini” sponges are half the regular length sponge and are usually adequate for up to 200 gallons per hour flow rates. For highest flow rates use extra large Hydro-Pond style Sponges #HS-PIII & #HS-PIV (same size sponge as Hydro V filters but in a coarse foam)

Item #

Description

Price

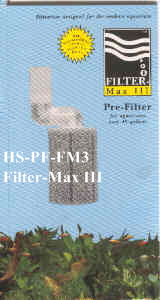

HS-PF-FM3

Filter Max III Pre-filter complete with multiple adapters and 2 elbows for adjusting away from tank wall.
Fitted with coarse Pro Series sponge
2 3/4” dia x 4” long

$9.90

HS-PF-FM2

Filter Max II Pre-filter complete with multiple adapters and 2 elbows for adjusting away from tank wall
Fitted with standard fine pored sponge
2 3/4” dia x 4” long sponge

$7.70

HS-PF-FM1

Filter Max I Pre-filter complete with multiple adapters and 2 elbows for adjusting away from tank wall
Fitted with standard fine pored sponge.
2 3/4” dia x 2” long sponge

$6.40

HS-PF90M3/4

Pre-Filter w/ 90 degree elbow and Mini size sponge, 3/4” male PVC adptr.

$7.48

HS-PF903/4

Pre-Filter w/ 90degree elbow and regular size sponge, 3/4” male PVC adptr.

$9.10

HS-PF90M1/2

Pre-Filter w/ 90 degree elbow and Mini size sponge
1/2” male PVC adptr.

$6.83

HS-PF90A1/2

Pre-Filter w/ 90degree elbow and regular size sponge,
1/2” male PVC adptr.

$6.29

HS-PFM1/2A

Pre-Filter w/ Mini Sponge and 1/2” straight PVC adptr.

$6.50

HS-PF1/2A

Pre-Filter w/ regular sponge and 1/2” straight PVC adptr.

$8.06

HS-PF3/4A

Pre-Filter w/ regular sponge and 3/4” straight PVC adptr.

$8.06

HS-PIII

Hydro-Pond Sponge #3
Water Pump driven style
multiple adapters for various pump intakes, 2 elbows for offset, and single coarse foam Hydro Pond sponge.
(4” long  x 5 3/4” dia. coarse sponge)

$13.50

HS-PIV

Hydro-Pond #4
Water pump driven style
 (2) Hydro-Pond Sponges
Multiple adapters for various pump intakes, 2 elbows for offset, and 2 coarse foam Hydro Pond sponges.
(8” long x 5 3/4” dia coarse sponge)

$16.50

Large Pre-filter Stacks for overflows.
Use on pre-filter overflow boxes or directly on pump intakes on submersible pumps or thread into bulkhead fittings on sump. We can also provide different custom size adapters to fit your needs.

PFS110

Prefilter Sponge only
Coarse Sponge sleeve for pre-filter use
will fit on screen tube PFP144 below
1” ID core x 3 1/2” OD x 10” long

$6.00

Pre-filter screen tubes for custom pump intakes or overflow stacks
Provides a more secure method of attaching sponges to pump intakes, no parts to fall apart.

PFP108 and PFP-244 series will fit directly into PVC socket fittings (not glued). Simplifies pre-filter installation using standard PVC fittings.Leave open screenin without sponge for a screened pump intake or even use as bulkhead fitting intake screen, with or w/o a sponge. Use PFS-110 sponges or Hydro-Pro series replacement sponges for prefilter.

FP-144 and PFP-244 series PVC pipe fits snugly inside providing a myriad of uses as pre-filter screens or for wrapping with blue bonded sheet or filter felt sponges. 1” size fits PFS-110 sponge or Hydro-Sponge replacement sponges. Provides a more secure method of attaching sponges to pump intakes, no parts to fall apart. Generally parts are not glued, however PVC elbows and pipe can be glued for a permanent installation.


We can supply complete assemblies as shown below or to your dimensions as required. Please inquire.

Use as single intake for pumps up to 1000 gph	Use as dual intake for pumps 1000 gph and larger

PFP-115105W

1” screen pre-filter pipe
x 10 1/2” long
fits into female PVC socket fittings for simple installation of prefilter
use PFS-110 sponge or Hydro-Pro series sponges

$4.28

PFP-115425W

1” screen pre-filter pipe
 x 42 1/2” long
fits into female PVC socket fittings for simple installation of prefilter - use PFS-110 sponge or Hydro-Pro series sponges

$13.36

PFP-115108CAP

End Cap for above PFP115 series screen pipe
fits inside screen pipe
eliminates the need to use PVC slip cap

$0.50

PFP-125SC

End Cap for above prefilter pipe
fits #PFP-115115W & PFP115425W
soft cap fits over end of pipe

$0.55

PFP-144

1” pipe size screen tube x 44” long
fits snugly over 1” PVC pipe
 Schedule 40 or Schedule 80

OUT

PFP-144CAP

End Cap for above PFP 144 screen pipe - fits inside
eliminates the need to use short piece of PVC pipe and PVC slip cap

$0.55

PFP-150-42W

1 1/2” pipe size screen tube x 42”
fits snugly in 1 1/2” PVC socket fittings (female fittings) S40 & S80

$19.00

PFP-150CAP

1.5” end cap plug for above
 PFP-150-42W

$1.10

PFP-244W

2” pipe size screen tube x 44” long
fits loosely into 2” PVC pipe socket fittings (female fittings)
S40 & S80
(use silicone glue or a thin sleeve
for better fit)
pipe also fits over sponges #H-0, #H-II
and Filtermax 3 #HS-PF-FM3 sponges to prevent fish such as plecos, eating sponge

$22.00

PFP-244CAP

2” end cap/plug for above
 PFP-244W

$1.40

ATI Hydro-Sponge Replacement Sponges & Parts

H-0R

Hydro-0 Replacement Sponge

$1.73

H-0PR

Hydro-0 PRO Replacement Sponge

$2.25

H-IR

Hydro-1 Replacement Sponge

$1.79

H-IPR

Hydro-1 PRO (coarse) Replacement Sponge

$2.90

H-IIR

Hydro-2 Replacement Sponge

$2.36

H-PSR

Hydro-2 PRO (coarse) Replacement Sponge

$2.55

H-IIIR

Hydro-3 Replacement Sponge

$2.73

H-IIIPR

Hydro-3 PRO (coarse) Replacement Sponge

$3.99

H-IVR

Hydro-4 Replacement Sponge

$3.28

H-IVPR

Hydro-4 PRO (coarse) Replacement Sponge

$5.94

H-VR

Hydro-5 Replcement Sponge

$3.98

H-PR

Hydro-5 PRO (HydroPond Replacement Sponge Coarse Sponge)

$8.13

H-VMR

Hydro V Mini (Pancake Sponge) Replacemnet Sponge

$2.45

Hydro-Sponge Parts (listed in order of assembly - from bottom up) more parts available - call

HS-BASE

Weighted Base for Hydro-Sponge air driven filter

$3.51

HS-A

Adapter or Step (riser spacer)

$1.48

HS-FS

Female Strainer - grid with flange which holds sponge
 use this one singly for H-0 or H-I or H-VM

$1.55

HS-MS

Male Strainer - grid with flange which holds sponge
 mating piece with HS-FS

$1.55

HS-B

Bullseye connector - attaches to flange side of either strainer HS-MS or HS-FS - where airline tubing connects to - has 4 spokes

$1.76

HS-LT-20PK

20 pack - Lift tube std length 5” - clear plastic rigid tube ~ 1” diameter connects to bullseye connector
-- REPLACE OLD DISCOLORED LIFT TUBES --

$14.00

HS-LT

Lift tube - clear plastic rigid tube ~ 1” diameter connects to bullseye connector
5” long lift tube

$0.76

HS-LT1

Lift tube - same as above but shorter length for H-I to allow H-I to be used in shallow tanks such as 10 gallon and smaller
~ 3 1/2” long lift tube

$0.76

HS-LTM

Lift tube for H-0 and HS-VMS- shorter lift tube for smaller tanks such as plastic holding tanks, bowls, etc.
~ 1 1/2“ long lift tube

$0.49

HS-LT8

8” Long Lift Tube for ATI Hydro-Sponge Filters

$0.86

BULK Reticulated Filter Foam
Foam sheet to make home-made sponge filters and Matten style in-tank filters
1/2 and 1/4 sheets available - CALL (cut charge may apply)

COARSE 15 PPI

FFR15P2X1SM

39” x 39” x 2” thick, coarse

$70.00

FFR15P4X1SM

39” x 39” x 4” thick, coarse

$140.00

MEDIUM 30 PPI

FFR30P2X1SM

39” x 39” x 2” thick, MEDIUM

$70.00

FFR30P4X1SM

39” x 39” x 4” thick, MEDIUM

$140.00

FINE 40 PPI

FFR40P2X1SM

39” x 39” x 2” thick, FINE

$70.00

FFR40P4X1SM

39” x 39” x 4” thick, FINE

$140.00
